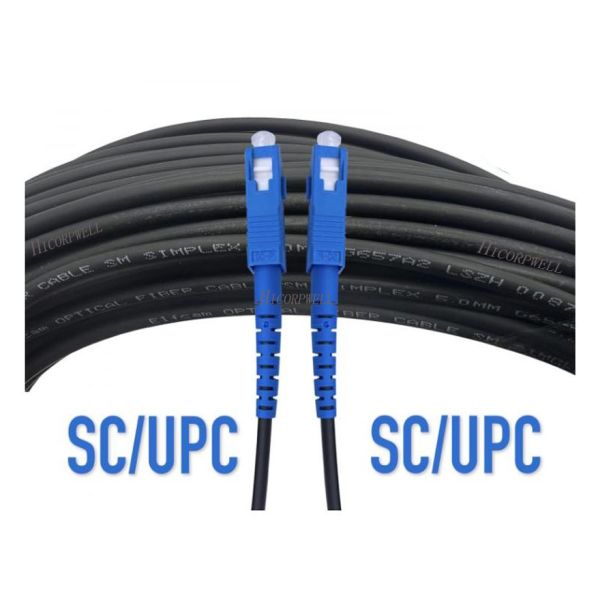

Durable Fiber Optic Patch Cables　SM sc upc outdoor patch cord for Communication Systems

Name: Durable Fiber Optic Patch Cables SM sc upc outdoor patch cord for Communication Systems
Brand: HICORPWELL
Price: 1 USD

Quality Durable Fiber Optic Patch Cables　SM sc upc outdoor patch cord for Communication Systems for sale

Brand Name : HICORPWELL

Model Number : ODVA LC Plug

Certification : IEC 60794-2-10/11

Place of Origin : China

MOQ : ２sets

Price : negotiation

Payment Terms : Western Union, L/C, T/T

Supply Ability : 5000pcs Per Week

Packaging Details : Max 100m/ per reel for 5.0 mm OD cable

Cable Type : SM sc upc outdoor patch cordSM sc upc outdoor patch cord

Connectors : sc upc

Paintcoat Color : Ｂｌａｃｋ

Jacket OD : 2MM 3MM

Length : Per Reel.100m -３00m

Package : Plastic bags with test report

Add info : Multimode Simplex Steel Armoured Fiber Optic Patch Cord

Fiber Count : Simplex Duplex

Contact Now

Durable Fiber Optic Patch Cables SM SC/UPC Outdoor Patch Cord for Communication Systems

A comprehensive technical and commercial guide for durable Single-Mode (SM) SC/UPC Outdoor Fiber Optic Patch Cables, tailored for communication system deployment with clear specifications, outdoor-specific features, applications, selection criteria, and installation tips.

Key Terminology Clarification

SM (Single-Mode): 9/125 μm OS2 fiber (G.652D/G.657A1 common), optimized for 1310nm/1550nm wavelengths, low attenuation, long-haul transmission, no modal dispersion
SC/UPC: Square Connector with Ultra Physical Contact polish; push-pull latching, ceramic ferrule, return loss ≥50 dB, insertion loss ≤0.3 dB (premium ≤0.2 dB), widely used in telecom/FTTH
Outdoor-rated: UV-resistant jacket, moisture barrier (gel/dry block), wide temperature range, optional armor (steel/Kevlar/FRP) for rodent/crush protection

Technical Specifications

Parameter	Standard Value	Premium Option
Fiber type	OS2 9/125 μm (G.652D/G.657A1)	G.657.A2/B3 (bend-insensitive)
Wavelength	1310 nm / 1550 nm	1625 nm (OTDR test)
Insertion Loss	≤ 0.3 dB	≤ 0.2 dB
Return Loss (UPC)	≥ 50 dB	≥ 55 dB
Jacket material	LSZH/PE (UV-resistant)	Armored LSZH/TPU
Operating temp	-40°C to +75°C	-40°C to +85°C
Mechanical protection	Kevlar reinforcement	Steel tube armor+FRP
Certifications	Telcordia GR-1209/1221, IEC 61754, CE, RoHS	CPR, NEBS

Outdoor-Specific Durability Features

UV & Weather Resistance: LSZH/PE outer sheath prevents sun-induced brittleness; black jackets reduce heat absorption
Moisture & Water Blocking: Gel-filled or dry-block longitudinal barriers stop water ingress along the cable core; sealed SC connector boots (IP67 rated) prevent end-face condensation
Mechanical Robustness: Kevlar yarn for tensile strength; metal/corrugated armor for anti-crush, anti-rodent; minimum bend radius (static 10× cable OD, dynamic 20× OD)
Temperature Stability: No performance degradation in extreme cold/heat, suitable for desert, high-altitude, and frigid regions
