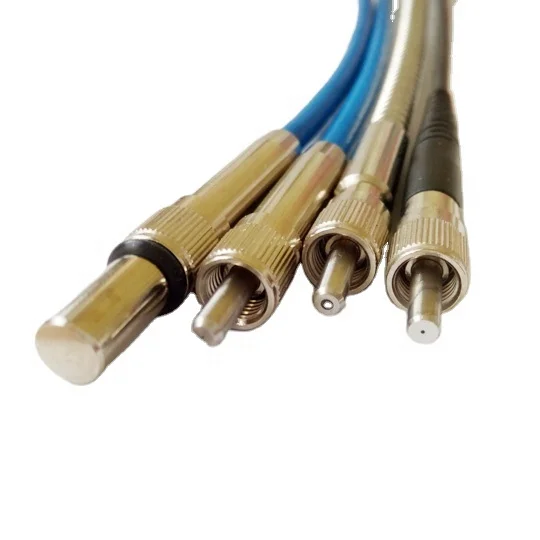

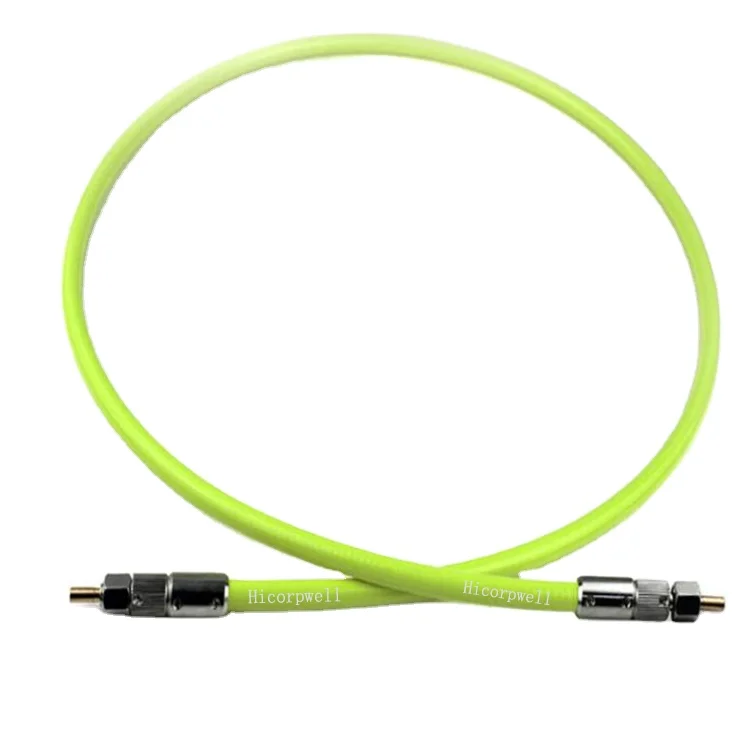

D80 Fiber Optic Cable with 200-800μm Core Diameters for High Power Laser and 90% Transmission Efficiency

Model Number : D80

Place of Origin : Guangdong, China

Brand Name : Hicorpwell

MOQ : 1

Price : $238.98-262.72

Fiber Core Diameter : 200μm, 300μm, 400μm, 600μm, 800μm

Fiber Core Material : High purity fused silica (Low-OH)

Fiber Type : Step-index fiber as standard; Graded-index fiber on request

Numerical Aperture : 0.22 as standard, others on request

Operating Wavelength : 400-2400 nm

Protection Tube Diameter : 8 mm

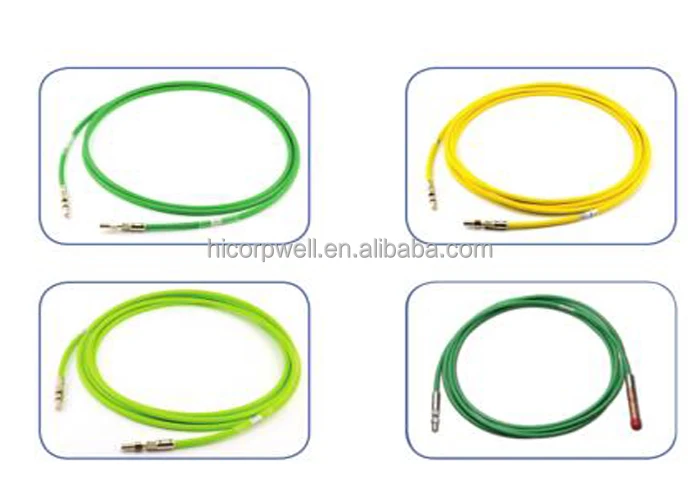

Cable Lengths : 3m, 5m, 10m, 20m (customizable)

Transmission Efficiency : >90%

Laser Power Capacity : Up to hundreds of watts

Ferrule Material : Copper alloys, Stainless steel, Zirconia

Boot Size : 3.0mm, 2.2mm

Fiber Size Options : 105um-1500um

Wavelength Range : 190nm-2500nm

Output Power : 400W, 600W, 800W, 1000W

Package Size : 25X20X1 cm

Contact Now

Products Description
D80 Fiber Optic Cable with 200-800μm Core Diameters for High Power Laser and 90% Transmission Efficiency
D80 fiber cables for high-power laser delivery are available in different fiber-core diameters from 200 microns to 800 microns(200μm, 300μm, 400μm, 600μm, 800μm). Heat dissipation plays a crucial role in the coupling of high-power. In principle, Hicorpwell D80 fiber cables use step-index double-clad fibers and ferrules of good heat-conducting copper alloys for laser transmission.

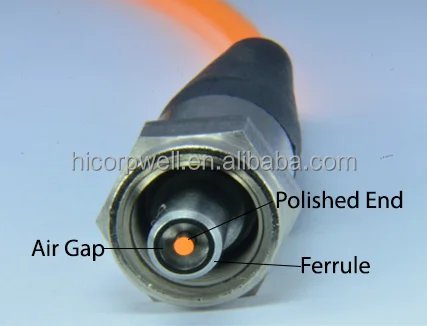

For a better protection, it introduces a sapphire and air gap into the D80 fiber connectors so that the D80 fiber cables can sustain laser power up to hundreds of watts in a single fiber with more than 90% transmission efficiency depending on the fiber core diameters and laser specifications. It’s an excellent choice for fiber-coupled laser systems in wavelength ranges from visible to near infrared (VIS-NIR, typically 400-2400 nm), such as high-power semiconductor lasers, solid-state lasers, and fiber lasers.

Areas of application include high power laser transmission, laser welding, laser cutting, and so onD80 fiber cables for high-power laser delivery are available in different fiber-core diameters from 200 microns to 800 microns
(200μm, 300μm, 400μm, 600μm, 800μm). Heat dissipation plays a crucial role in the coupling of high-power.
In principle, Hicorpwell D80 fiber cables use step-index double-clad fibers and ferrules of good heat-conducting copper alloys for laser transmission.
FEATURES OF D80 FIBER CABLES

* Sapphire and Air Gap Protection

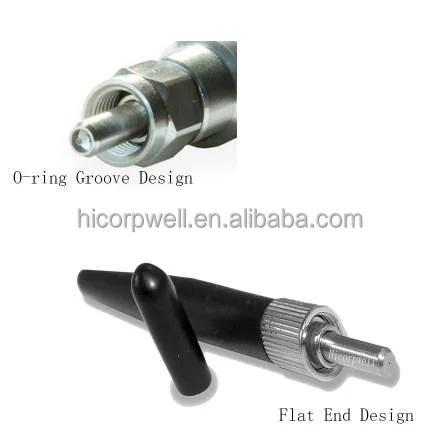

* Precisely Polished D80 Fiber Connectors
* Step-index Fiber Optimized for VIS-NIR
* 0.22NA as Standard; Others on Request

APPLICATIONS OF D80 FIBER CABLES

 * High-power and Flexible Laser Transmission
* Laser Welding
* Laser Cutting
* Other Fiber-coupled Laser Systems

D80 Fiber Optic Cable with 200-800μm Core Diameters for High Power Laser and 90% Transmission Efficiency
D80 Fiber Optic Cable with 200-800μm Core Diameters for High Power Laser and 90% Transmission Efficiency
D80 Fiber Optic Cable with 200-800μm Core Diameters for High Power Laser and 90% Transmission Efficiency
Applications:

1.Food Safety Testing 2.UV for skin care applications 3.Medical light detection device 4.Industrial control, factory automation .
5.Industrial silicon, liquid, spectral detection 6.Optical applications experiments on measurement 7.Automobiles and aircraft as well as military applications

Features :

1.Good fatigue resistance
2.Connector diversification options, special custom
3.Large core optical fiber, a variety of optional specifications
4.Fiber 105um-1500um optional 190nm-2500nm wavelength range can be selected
D80 Fiber Optic Cable with 200-800μm Core Diameters for High Power Laser and 90% Transmission Efficiency
D80 Fiber Optic Cable with 200-800μm Core Diameters for High Power Laser and 90% Transmission Efficiency
Specifications of D80 Fiber Cables for High-Power Laser
Fiber Core Diameter (μm)
200, 300, 400, 600, 800
Fiber Core Material
High purity fused silica (Low-OH)
Fiber Type
Step-index fiber as standard; Graded-index fiber on request

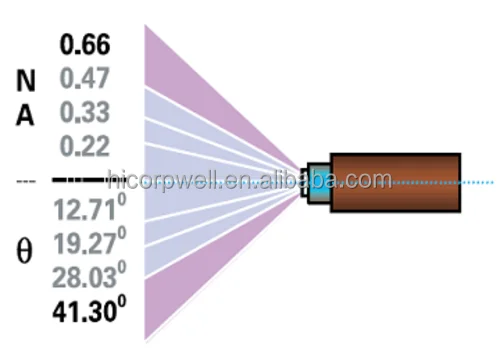

Numerical Aperture (NA)
0.22 as standard, others on request
Operating Wavelength (nm)
400-2400
Protection Tube Diameter (mm)
8
Cable Lengths (m)
3, 5, 10, 20, etc. (customizable)

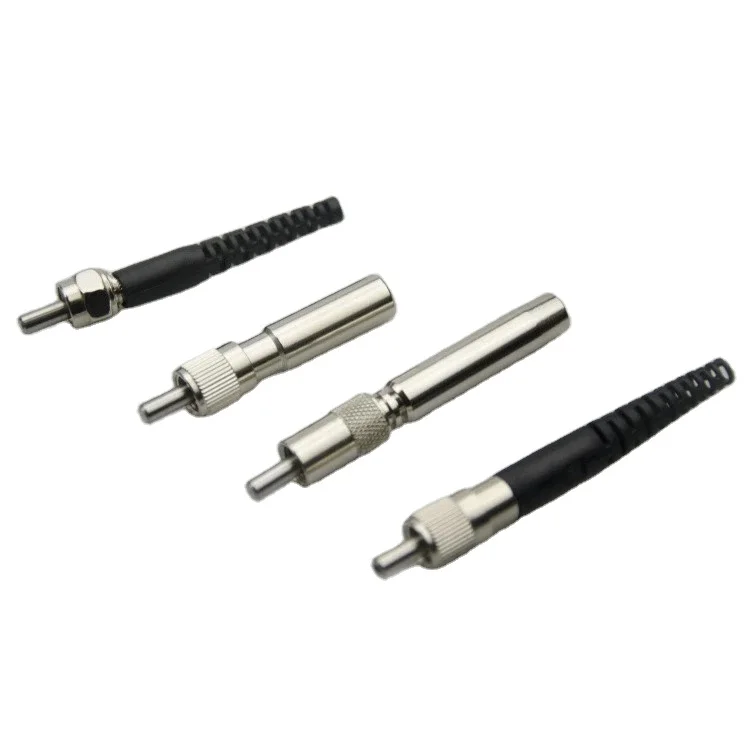

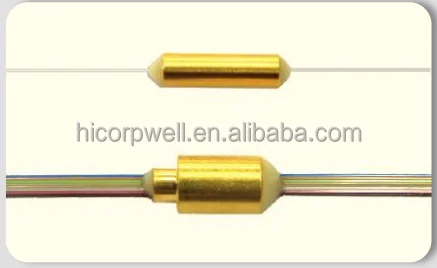

D80 patchcord 300/330um 400/440um 600um/660 customization Fiber Optic Connector with Ceramic / Metal Fiber Ferrule

Optical fiber is an abbreviation of optical fiber, which is a light transmission tool that uses
the principle of total reflection of light in fibers made of special synthetic plastics.

The tiny optical fiber is encapsulated in a plastic sheath so that it can be bent and not
easily broken.

SI fiber has a substantially uniform energy transmission distribution, and its melting shape
is similar to that of a thin pot bottom. Therefore, it is suitable for thin material welding and
applications where the area of the weld nugget is expected to be enlarged.

GI fiber is suitable for welding thick objects due to its deep dissolution characteristics.

The fiber core diameter specifications are:
0.2mm.3mm, 0.4mm, 0.6mm, 0.8mm NA: 0.22nm

Standard models: SI200E, SI300E, SI400E, SI600F, SI800F, GI400E GI600E
output power can reach 400W, 600W, 800W, 1000W

Optical fiber standard length: customized by customer
D80 Fiber Optic Cable with 200-800μm Core Diameters for High Power Laser and 90% Transmission Efficiency
D80 Fiber Optic Cable with 200-800μm Core Diameters for High Power Laser and 90% Transmission Efficiency
D80 Fiber Optic Cable with 200-800μm Core Diameters for High Power Laser and 90% Transmission Efficiency
D80 Fiber Optic Cable with 200-800μm Core Diameters for High Power Laser and 90% Transmission Efficiency
D80 Fiber Optic Cable with 200-800μm Core Diameters for High Power Laser and 90% Transmission Efficiency
D80 Fiber Optic Cable with 200-800μm Core Diameters for High Power Laser and 90% Transmission Efficiency
D80 Fiber Optic Cable with 200-800μm Core Diameters for High Power Laser and 90% Transmission Efficiency
D80 Fiber Optic Cable with 200-800μm Core Diameters for High Power Laser and 90% Transmission Efficiency
D80 Fiber Optic Cable with 200-800μm Core Diameters for High Power Laser and 90% Transmission Efficiency
D80 Fiber Optic Cable with 200-800μm Core Diameters for High Power Laser and 90% Transmission Efficiency
Part#
Brand
Ferrule
Fiber size
Fiber type
Boot size
HCW0100083(905) (hexagonal type)
Hicorpwell
Stainless steel ferrule RoHS compliant
126um
multimode
3.0mm
HCW0100084(906) (round nut type)
Hicorpwell
nickel silver ferrule RoHS compliant
126um
multimode
3.0mm
HCW0100098(905) (round nut type)
Hicorpwell
Zirconia ferrule RoHS compliant
126um
multimode
3.0mm
HCW0100105(905) hexagonal type)
Hicorpwell
Stainless steel ferrule RoHS compliant
1.0mm
multimode
2.2mm
HCW0100105-001(905) (hexagonal type)
Hicorpwell
Stainless steel ferrule RoHS compliant
1040um
multimode
3.0mm
HCW0100105-002(905) (round nut type)
Hicorpwell
Stainless steel ferrule RoHS compliant
1040um
multimode
3.0mm
HCW0100105-003(905) (round nut type)
Hicorpwell
Stainless steel ferrule RoHS compliant
2050um
multimode
3.0mm
HCW0100105-004(905) (round nut type)
Hicorpwell
Stainless steel ferrule RoHS compliant
2100um
multimode
3.0mm
HCW0100106(905)
Hicorpwell
nickel silver ferrule RoHS compliant
235um
multimode
3.0mm
HCW0100107(905)
Hicorpwell
nickel silver ferrule RoHS compliant
127um
multimode
3.0mm
HCW0100108(905)
Hicorpwell
nickel silver ferrule RoHS compliant
104um
multimode
3.0mm
HCW0100110(905) (long round nut type)
Hicorpwell
Stainless steel ferrule RoHS compliant
126um
multimode
3.0mm
HCW0100111(905) (round nut type)
Hicorpwell
Zirconia ferrule RoHS compliant
126um
multimode
3.0mm
HCW0100112(905) (hexagonal type)
Hicorpwell
Stainless steel ferrule RoHS compliant
235um
Multimode
3.0mm
HCW0100113(905) (round nut type)
Hicorpwell
Zirconia ferrule RoHS compliant
435um
Multimode
3.0mm
HCW0100114(905) (hexagonal type)
Hicorpwell
Zirconia ferrule RoHS compliant
125um
Multimode
3.0mm
HCW0100115(905) (round nut type)
Hicorpwell
Stainless steel ferrule RoHS compliant
2000um
Multimode
3.0mm
HCW0100116(905) (round nut type)
Hicorpwell
Long Stainless steel ferrule RoHS compliant
245um
Multimode
3.0mm
HCW0100117(905) (long round nut type)
Hicorpwell
Stainless steel ferrule RoHS compliant
245um
Multimode
3.0mm
HCW0100118(905) (hexagonal type)
Hicorpwell
Long Stainless steel ferrule RoHS compliant
245um
Multimode
3.0mm
Company Profile
D80 Fiber Optic Cable with 200-800μm Core Diameters for High Power Laser and 90% Transmission Efficiency
D80 Fiber Optic Cable with 200-800μm Core Diameters for High Power Laser and 90% Transmission Efficiency
D80 Fiber Optic Cable with 200-800μm Core Diameters for High Power Laser and 90% Transmission Efficiency
D80 Fiber Optic Cable with 200-800μm Core Diameters for High Power Laser and 90% Transmission Efficiency
FAQ
Q1: Are your trading company or manufacture ? A: We are factory verified by TUV Q2: What is your delivery time ? A: Generally, sample: 3~5 working days. formal order: 7-10 working days. Q3: Do you provide OEM service ? A: Yes, we can print your logo or label on the products or on the box. Q4: Can you provide free samples ? A: Some of low value samples can be free for you, but you need pay for the shipping cost. Q5: How can you guarentee the quality ? A: Build on our perfect quality management system, all of our products were 100% tested before the shipment. Q6: What's your payment terms ? A: We accept T/T, Western Union, Money Gram, Paypal. For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment.
